Have Mohr Fun

This App provides an interactive Mohr's circle graphical user interface. With a given state of plane stress (or strain) and rotation angle, and upon hitting the Run button, this App: (1) performs a stress (or strain) transformation; (2) computes the principal and maximum shear stresses (or strains); and (3) plots Mohr's circle. Users may also provide their own Matlab code that interacts with this App to perform the same (hopefully!) transformations.

Download Matlab App

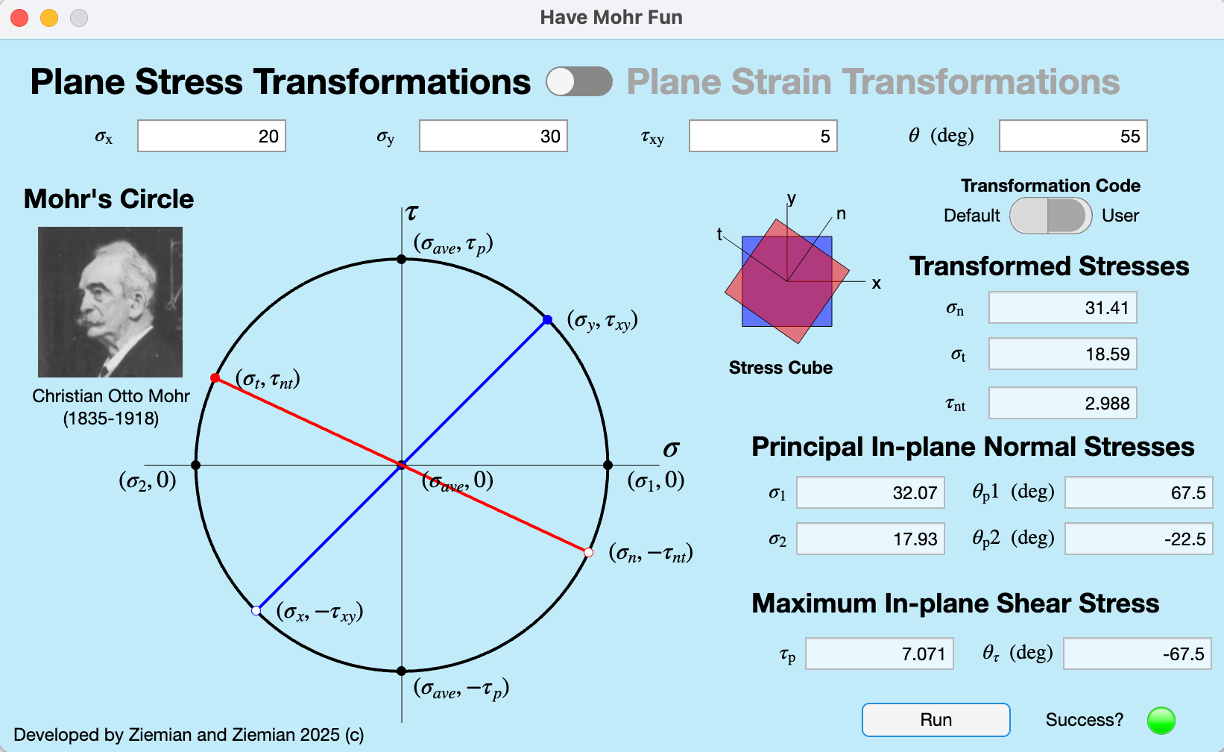

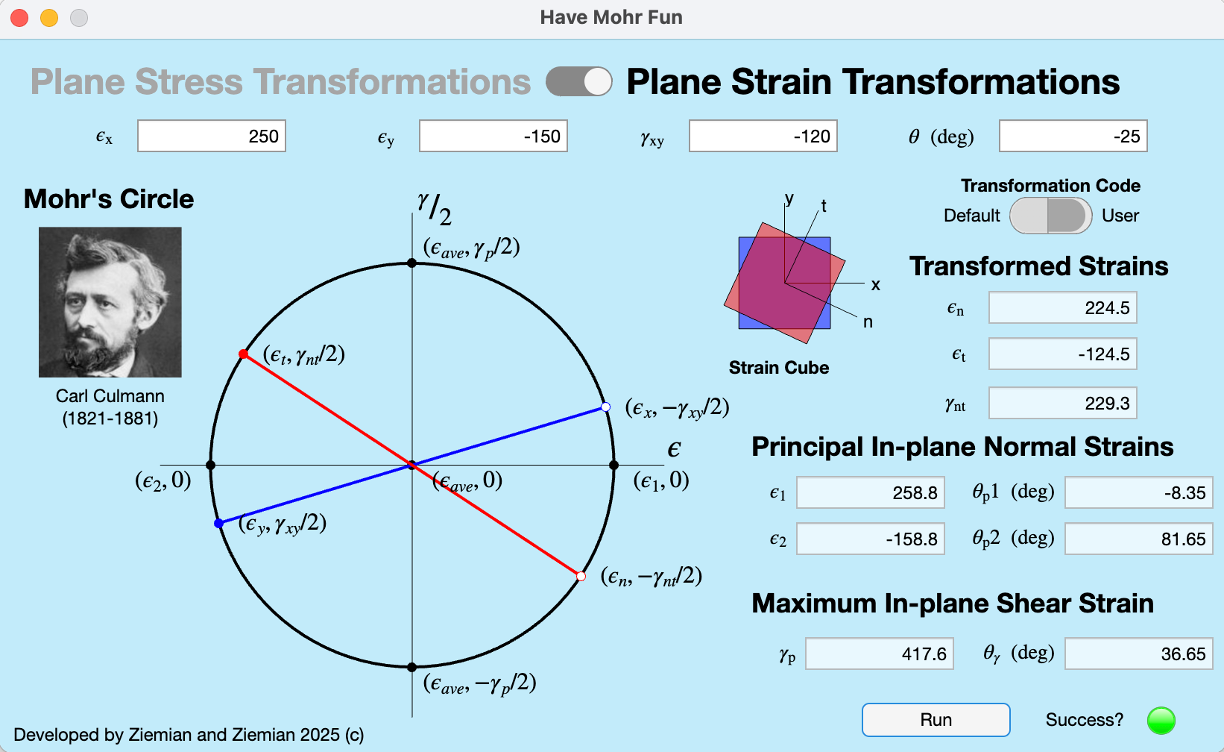

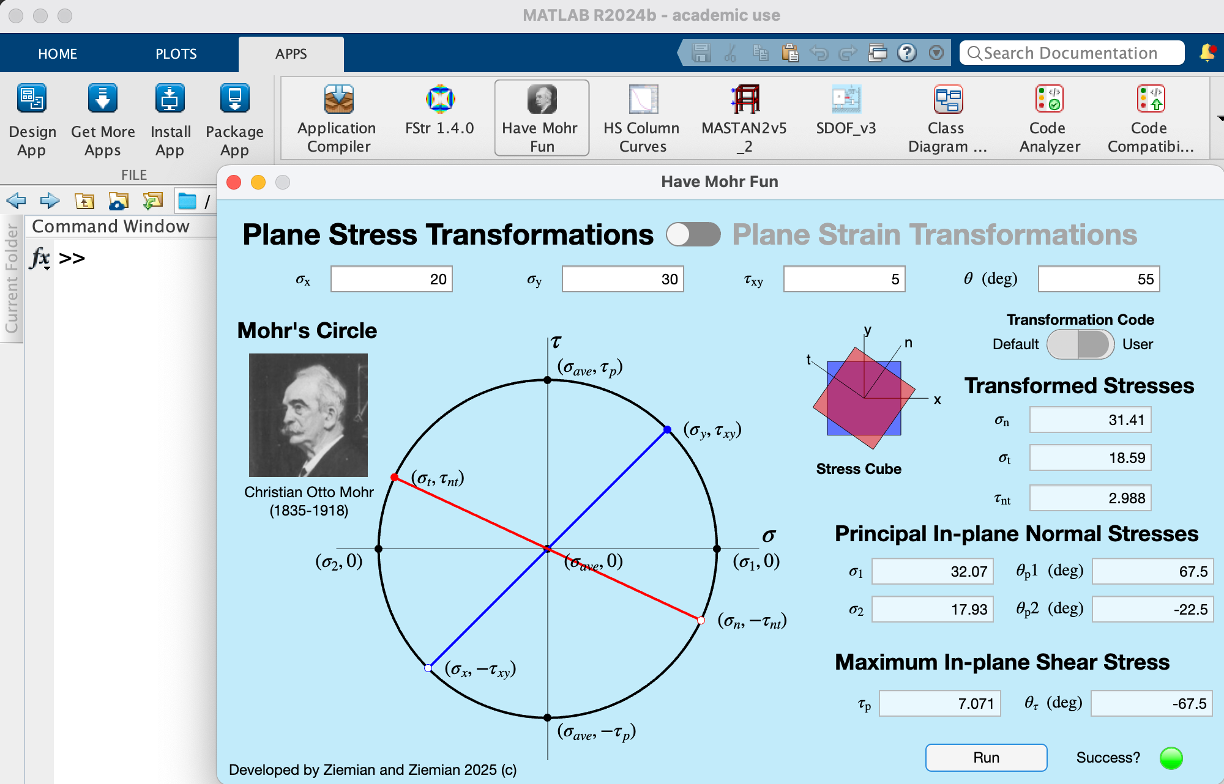

Screenshots

Have Mohr Fun – Stress Analysis Have Mohr Fun – Strain Analysis Have Mohr Fun - Matlab App
