Photos of 3D Printed Models

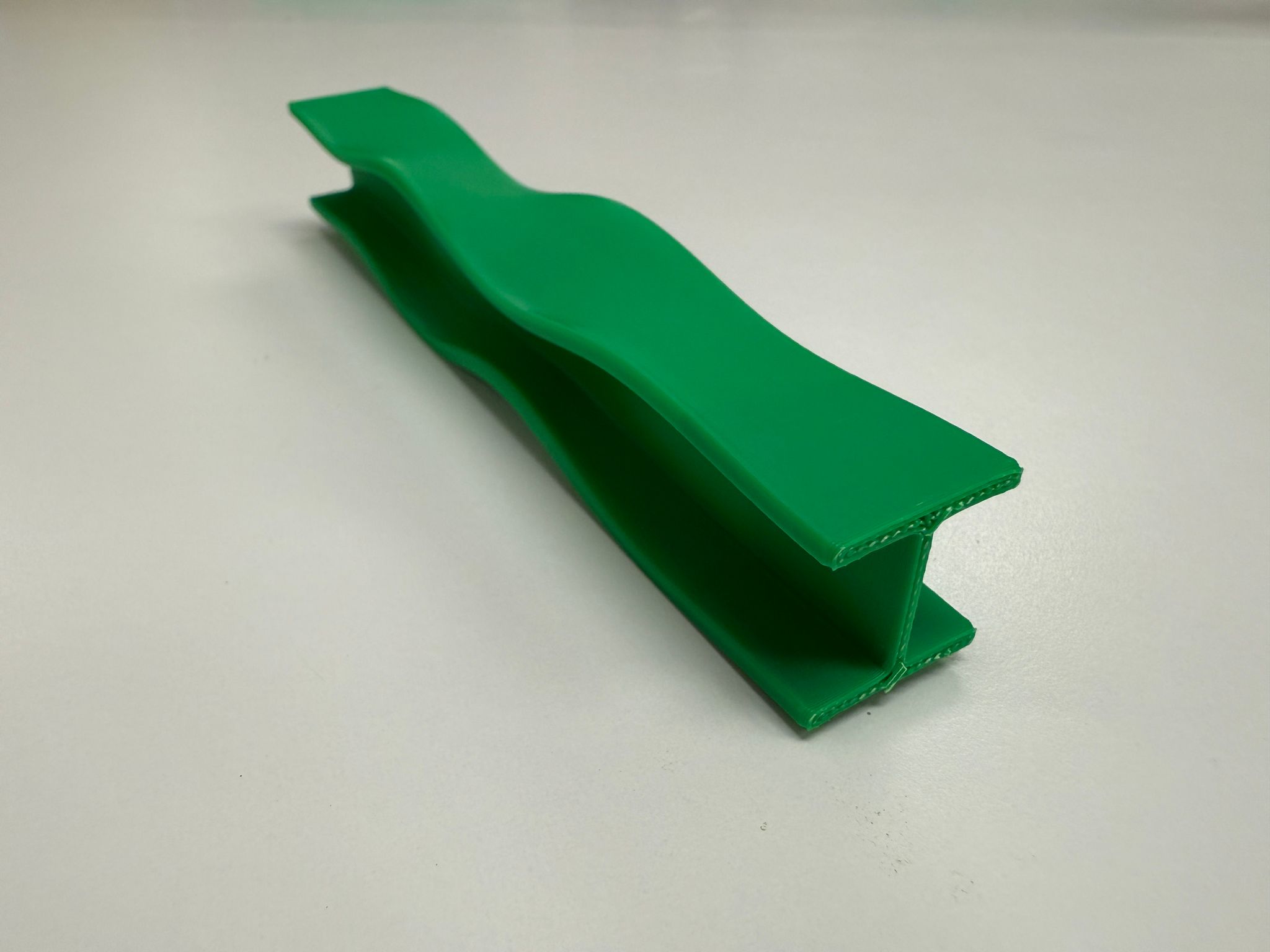

C1: I-shape, Short, Local, Fixed-Fixed

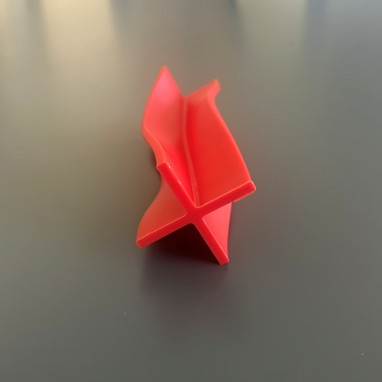

C2: Cruciform, Short, Torsional, Fixed-Fixed

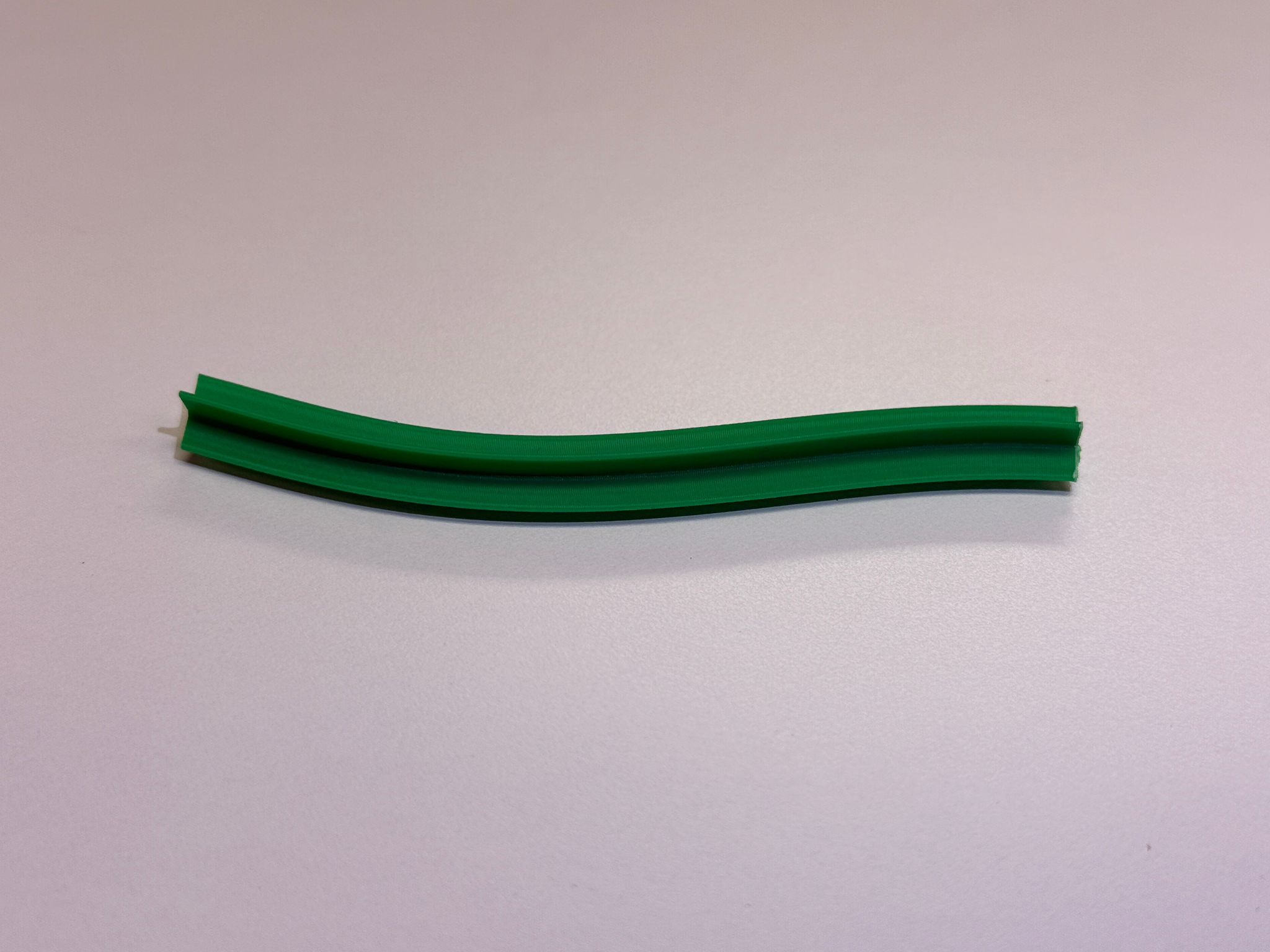

C3: Cruciform, Long, Flexural, Fixed-Fixed

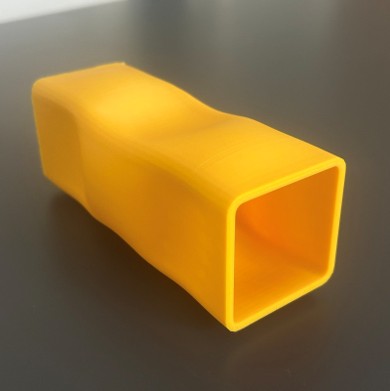

C4: Square HSS, Short, Local, Fixed-Fixed

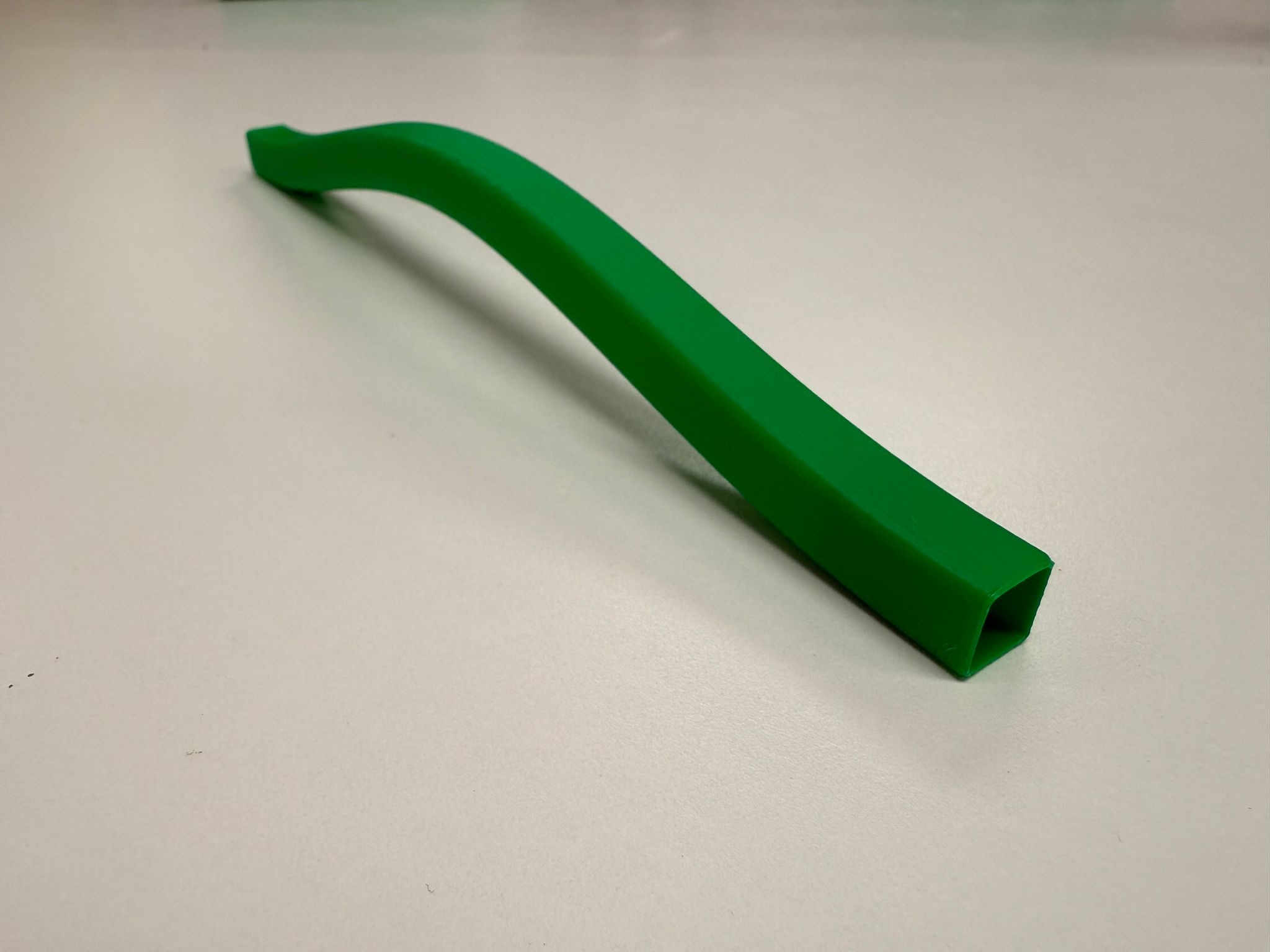

C5: Square HSS, Long, Flexural, Fixed-Fixed
C6: Circular HSS, Short, Local, Fixed-Fixed

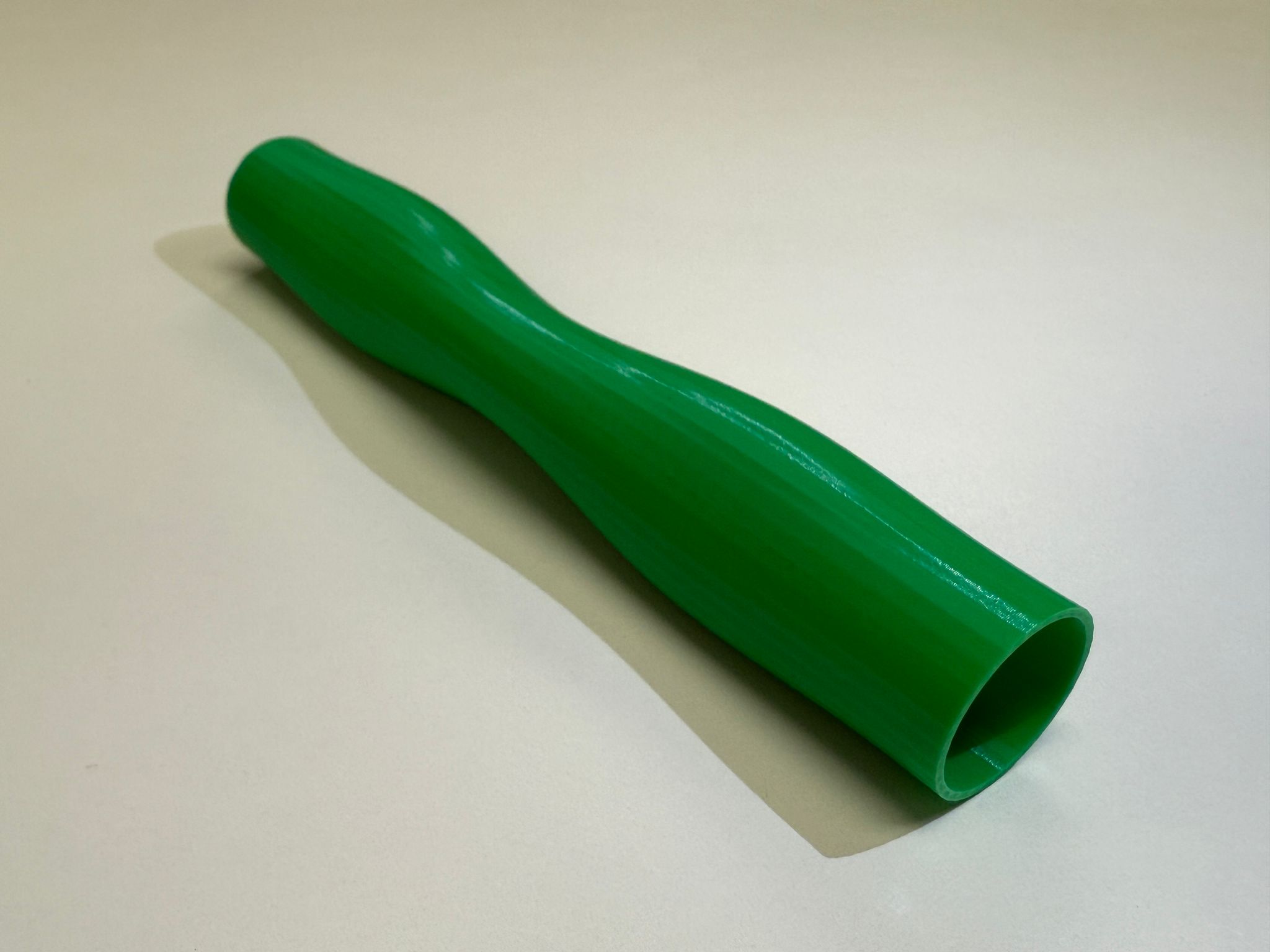

C7: Circular HSS, Intermediate, Local, Fixed-Fixed

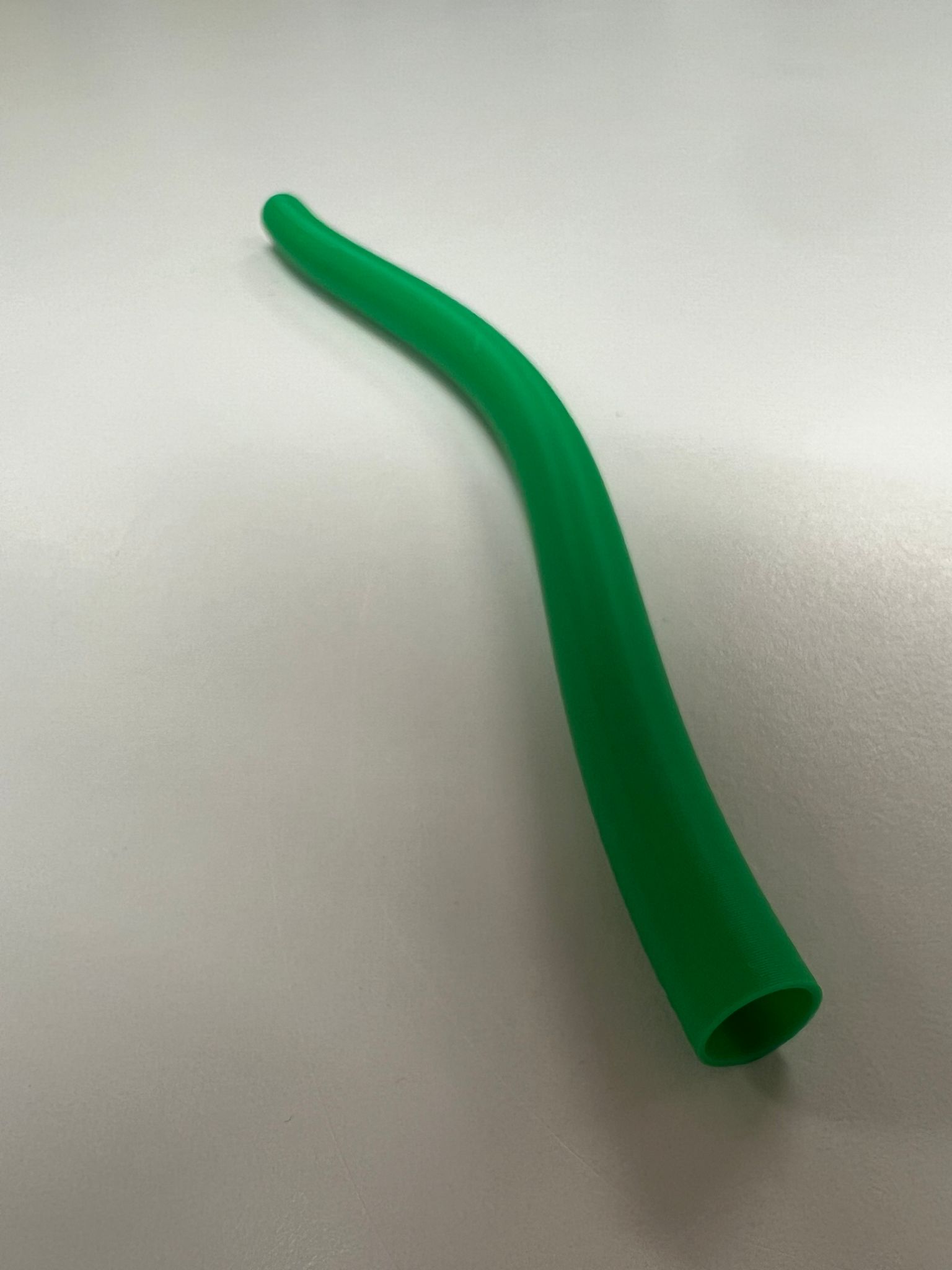

C8: Circular HSS, Long, Flexural, Fixed-Fixed

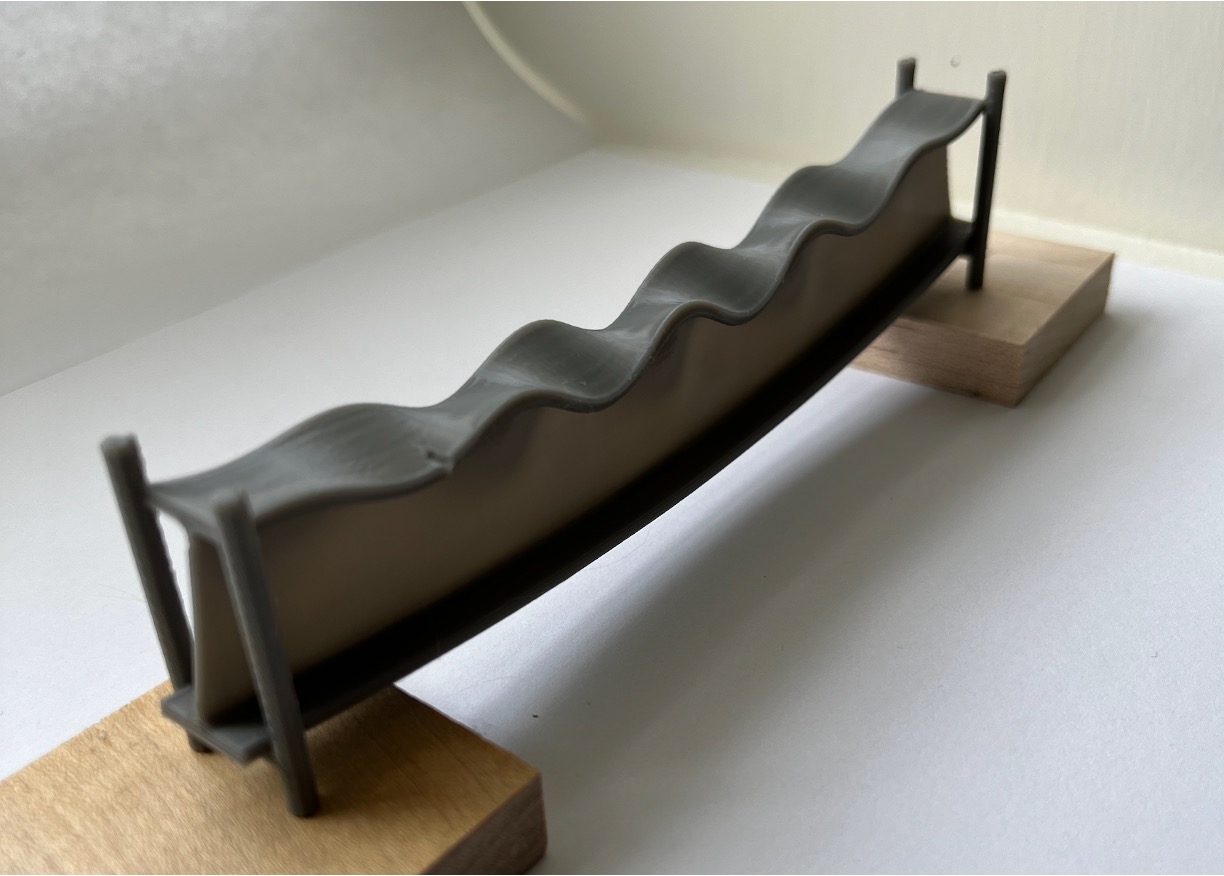

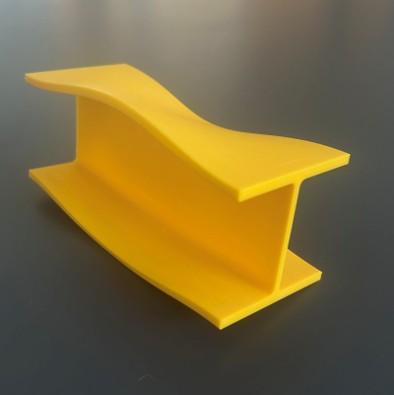

B1: Beam, Local, Pinned-Pinned

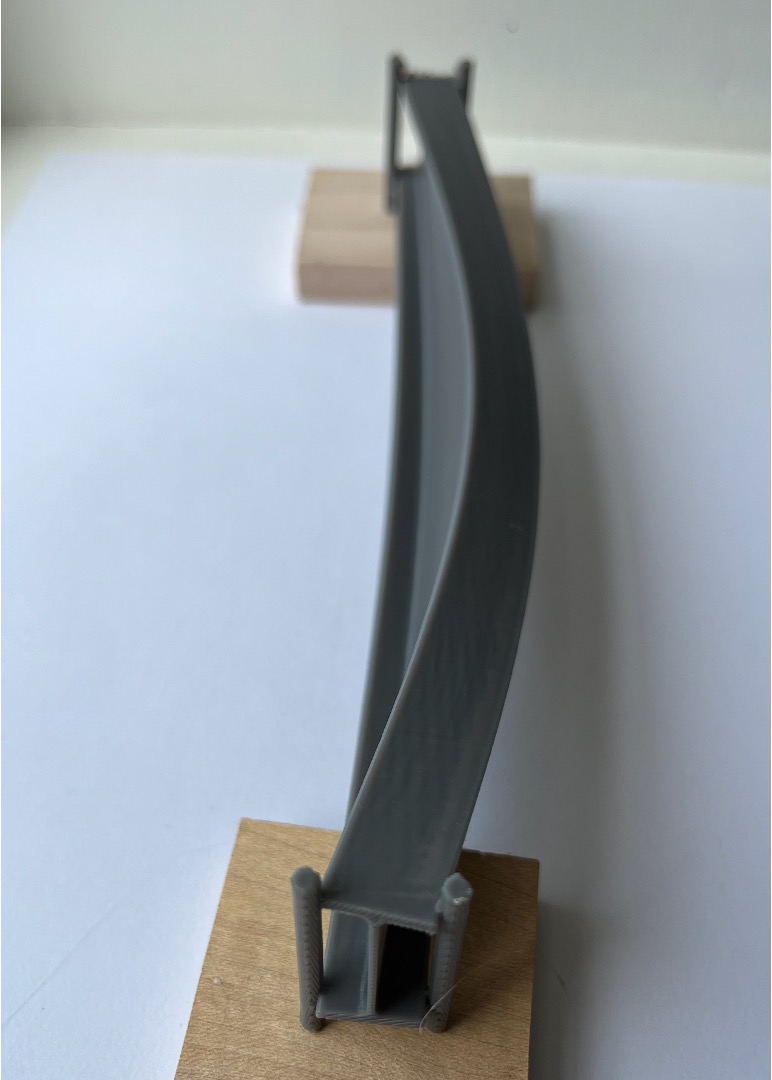

B2: Beam, LTB, Pinned-Pinned

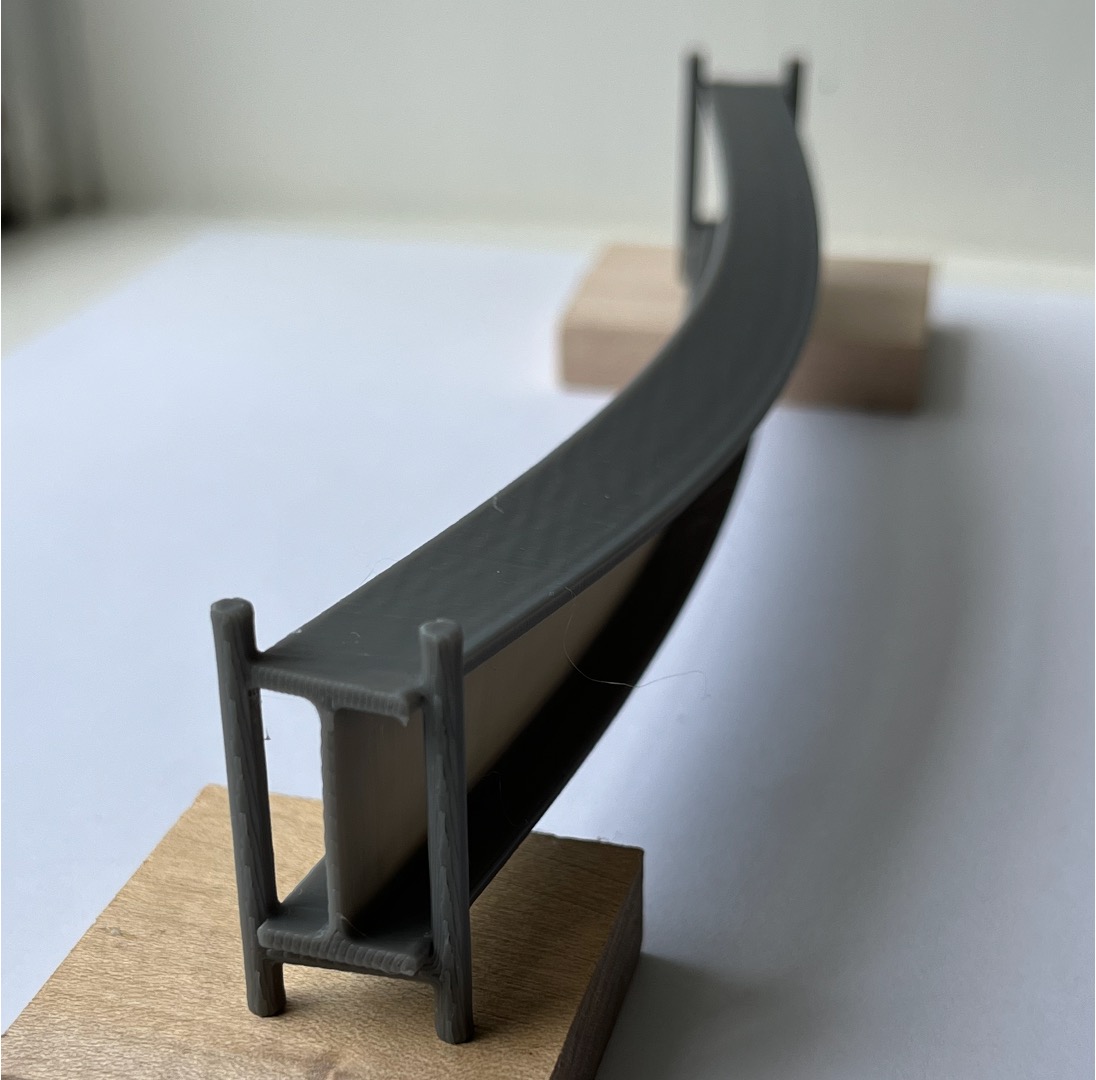

B3: Beam, Flexural-LTB, Pinned-Pinned

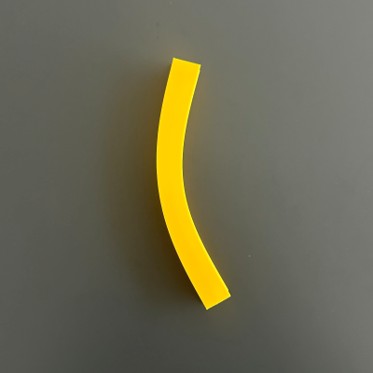

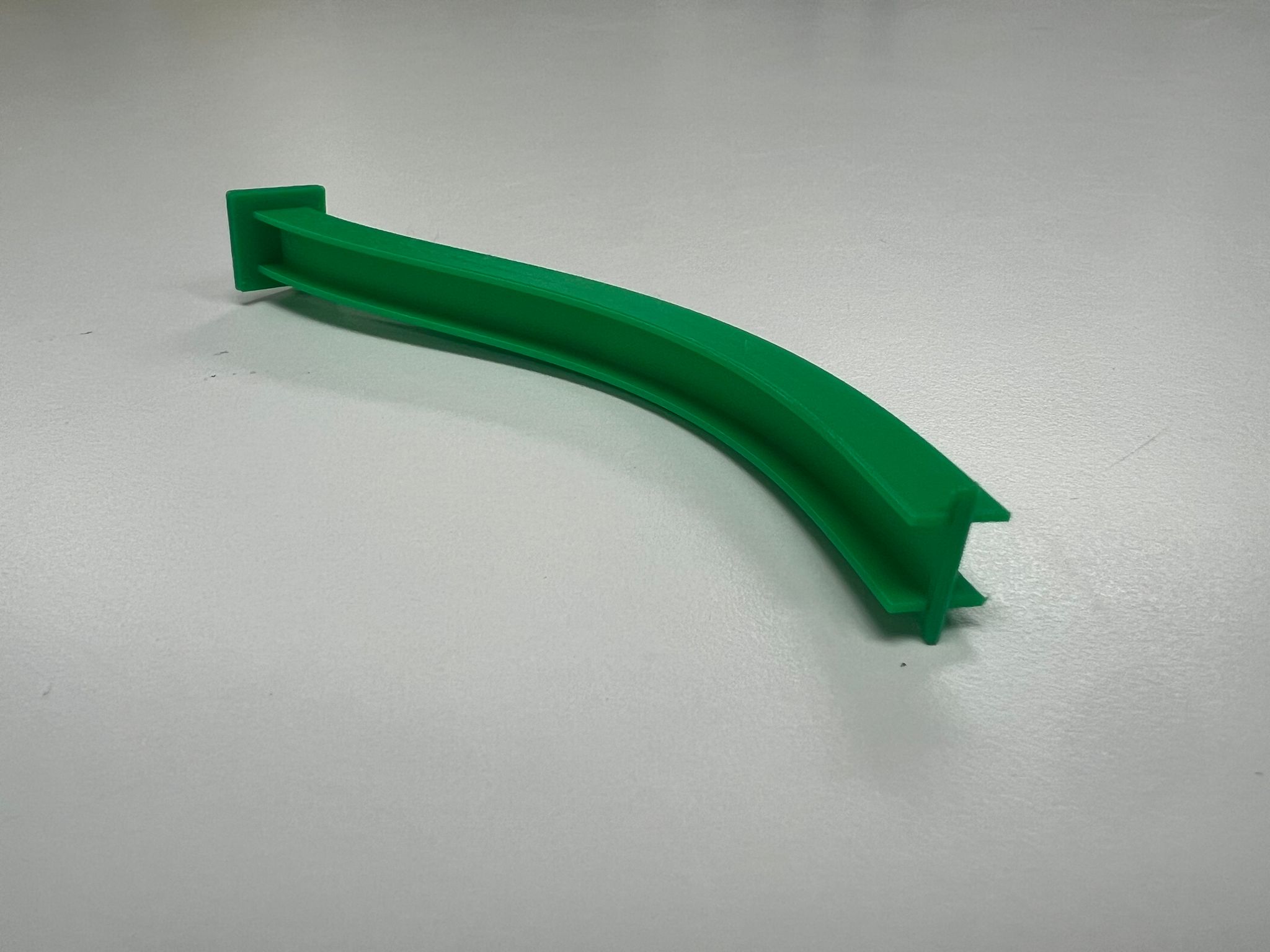

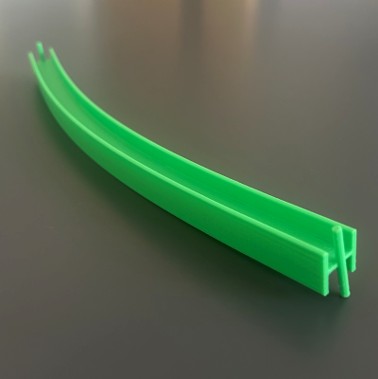

I1: Column, Minor, Euler, L
I2: Column, Local, Fixed-Fixed, 0.8L
I3: Column, Minor, Fixed-Pinned, 1.4L

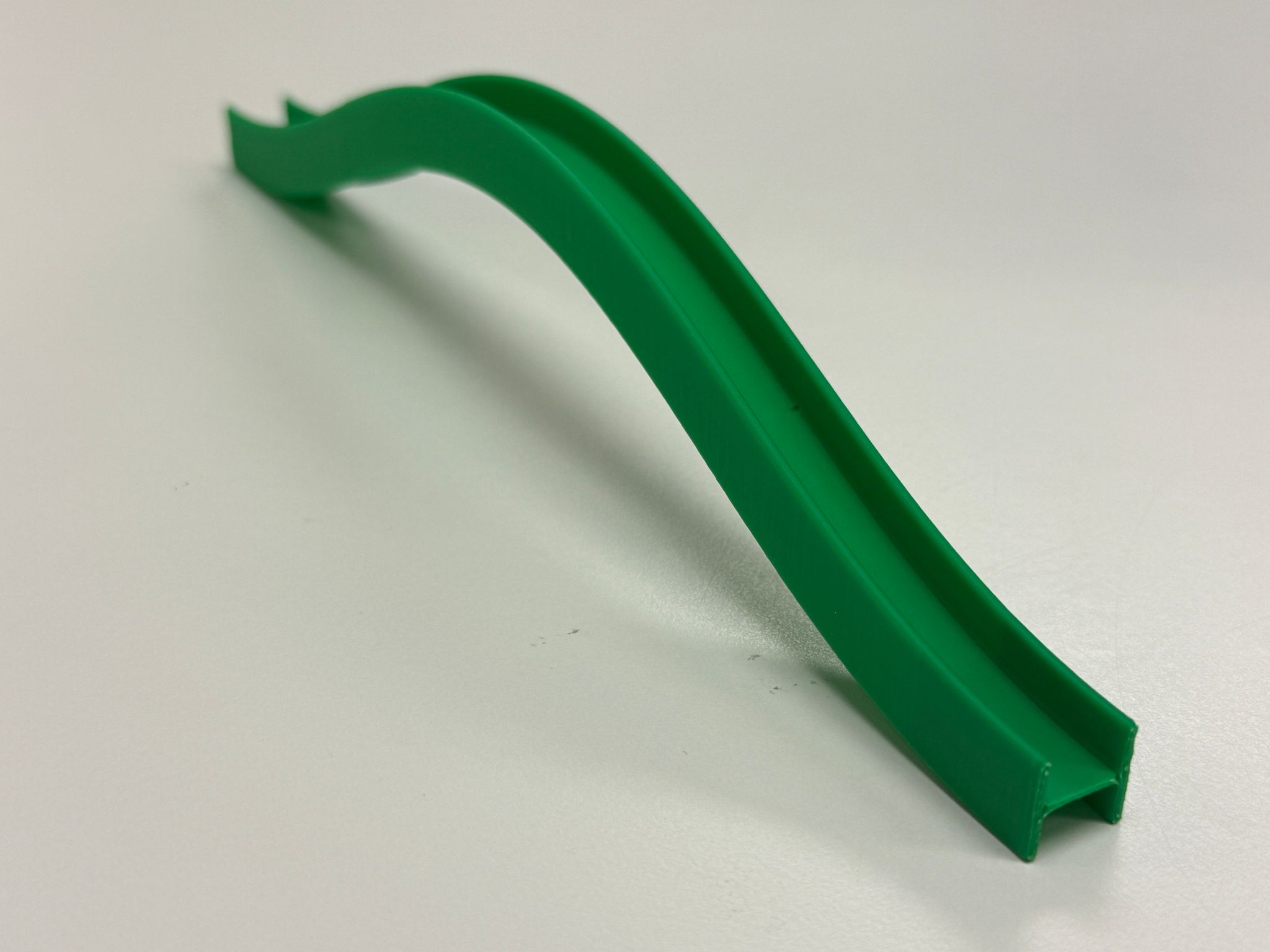

I4: Column, Minor, Fixed-Fixed, 2L

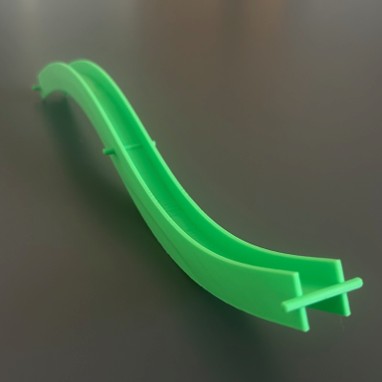

I5: Column, Minor, Mid-Height Brace, 2L
I6: Column, Major, Euler, 2L

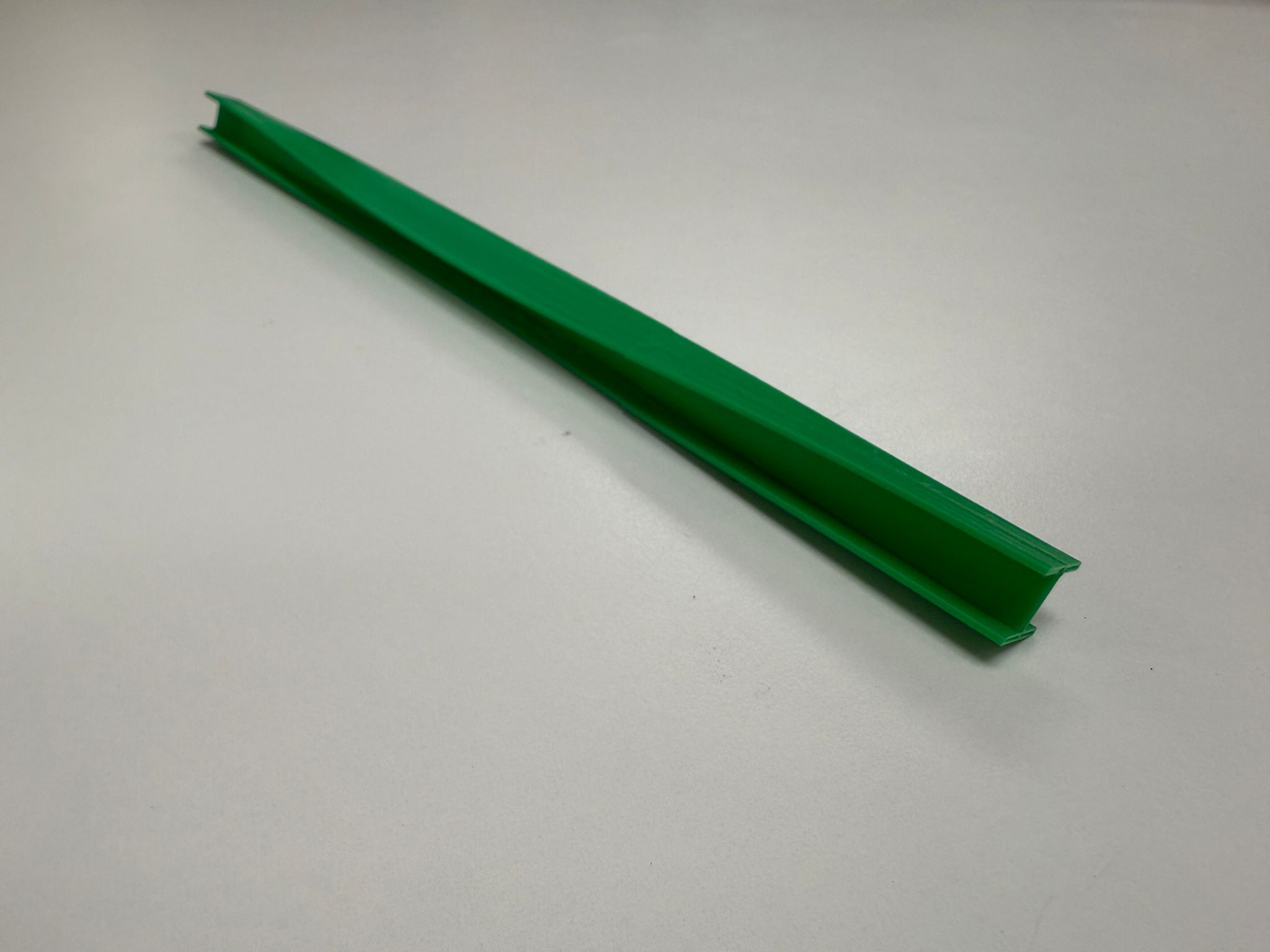

I7: Column, Torsional, Fixed-Fixed, 2.5L

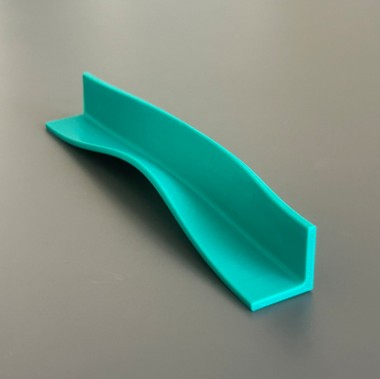

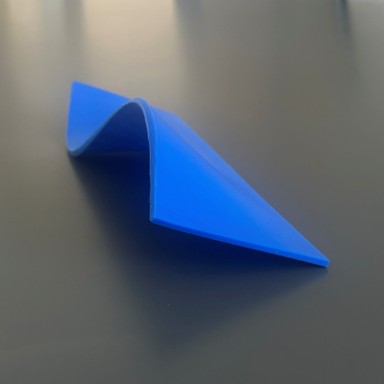

A1: Angle, Torsional, Fixed-Fixed
A2: Angle, Flexural-Torsional, Fixed-Fixed

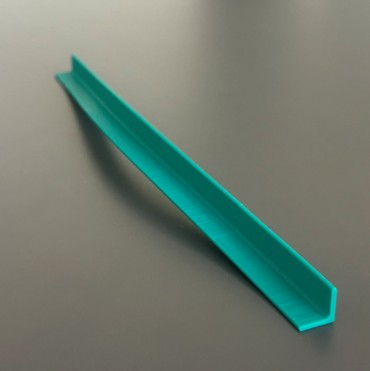

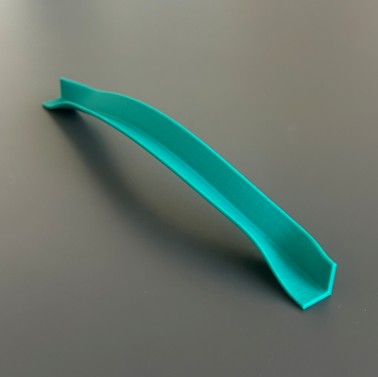

A3: Angle, Flexural, Fixed-Fixed

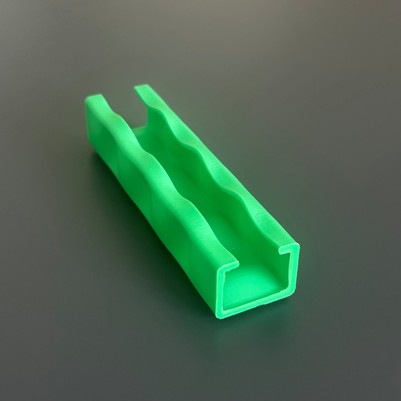

LC1: Lipped Channel, Local

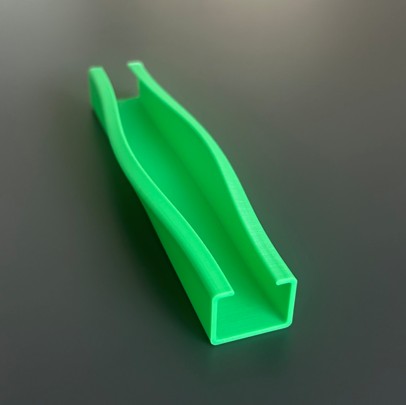

LC2: Lipped Channel, Distortional

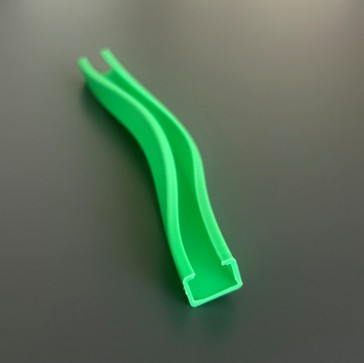

LC3: Lipped Channel, Flexural-Torsional

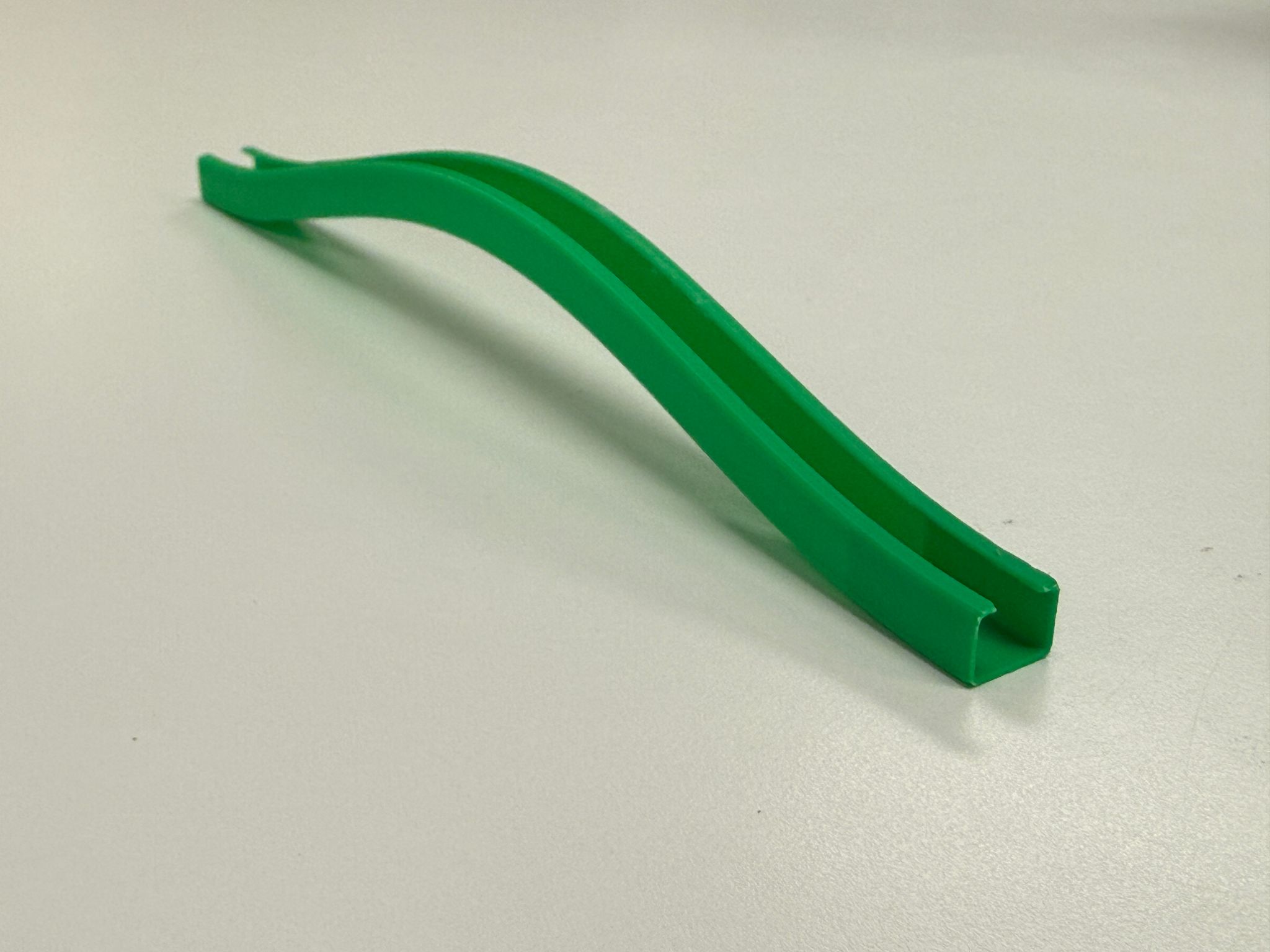

LC4: Lipped Channel, Flexural

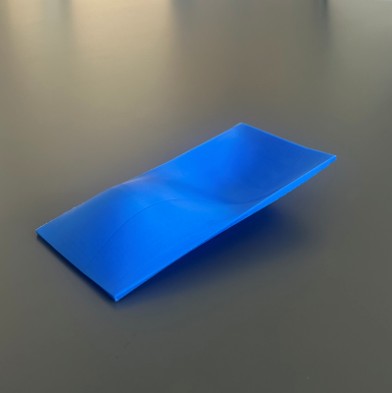

P1: Plate, Simple-Simple

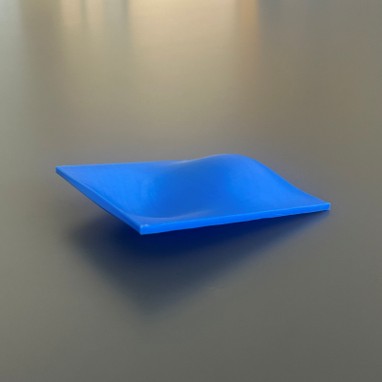

P2: Plate, Fixed-Fixed

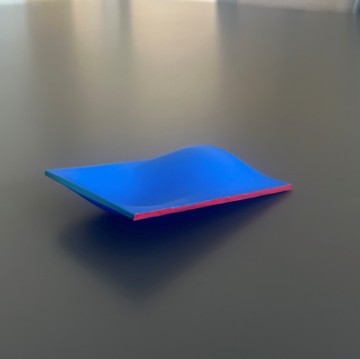

P3: Plate, Fixed-Simple

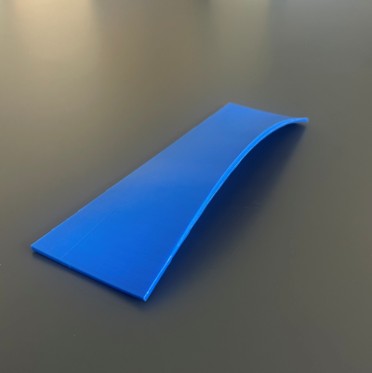

P4: Plate, Simple-Free
P5: Plate, Fixed-Free

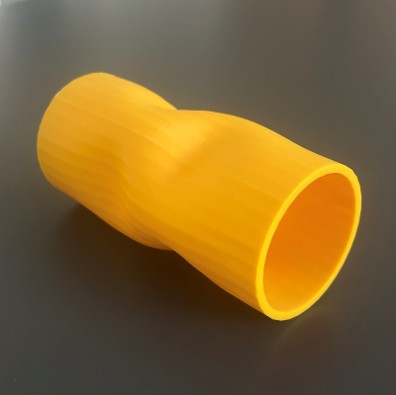

T1: Circular Hollow, Torsion, Short, Local

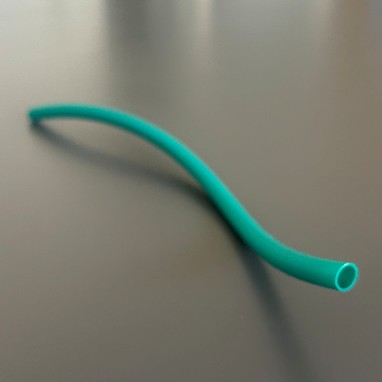

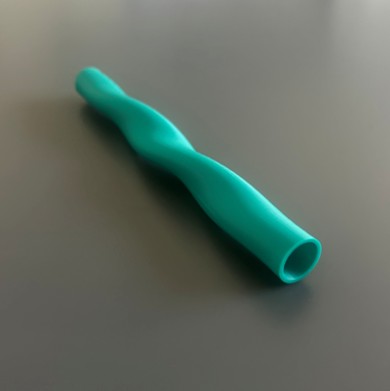

T2: Circular Hollow, Torsion, Long, Helical
T3: Square Hollow, Torsion, Short, Local

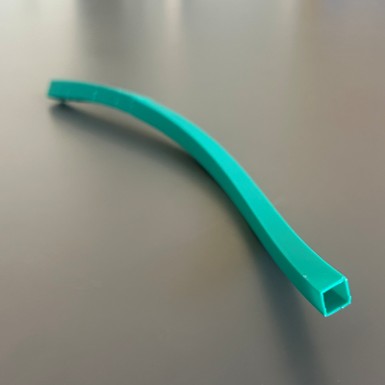

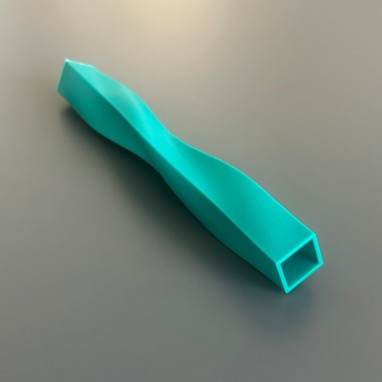

T4: Square Hollow, Torsion, Long, Helical

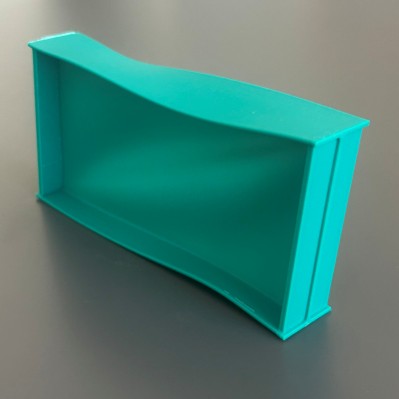

G1: Deep Girder, No Transverse Stiffener, Shear, Local

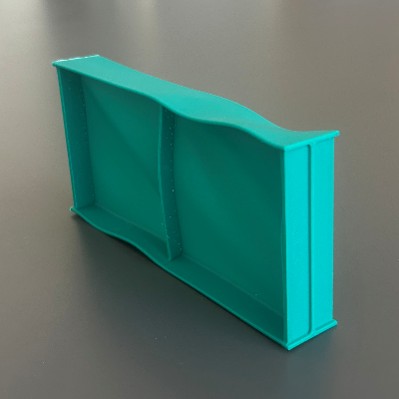

G2: Deep Girder, Transverse Stiffener, Shear, Local

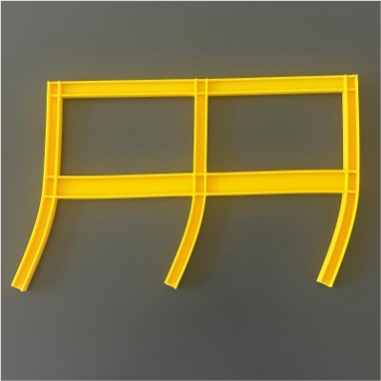

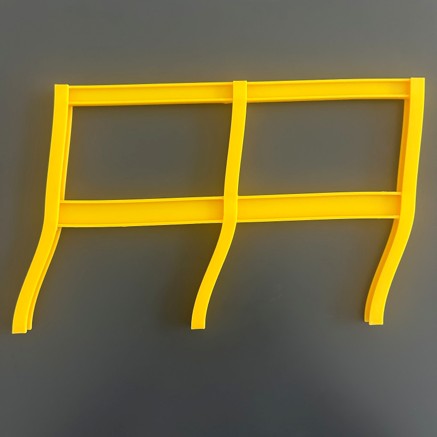

F1: Frame, Major, Normal, Pinned

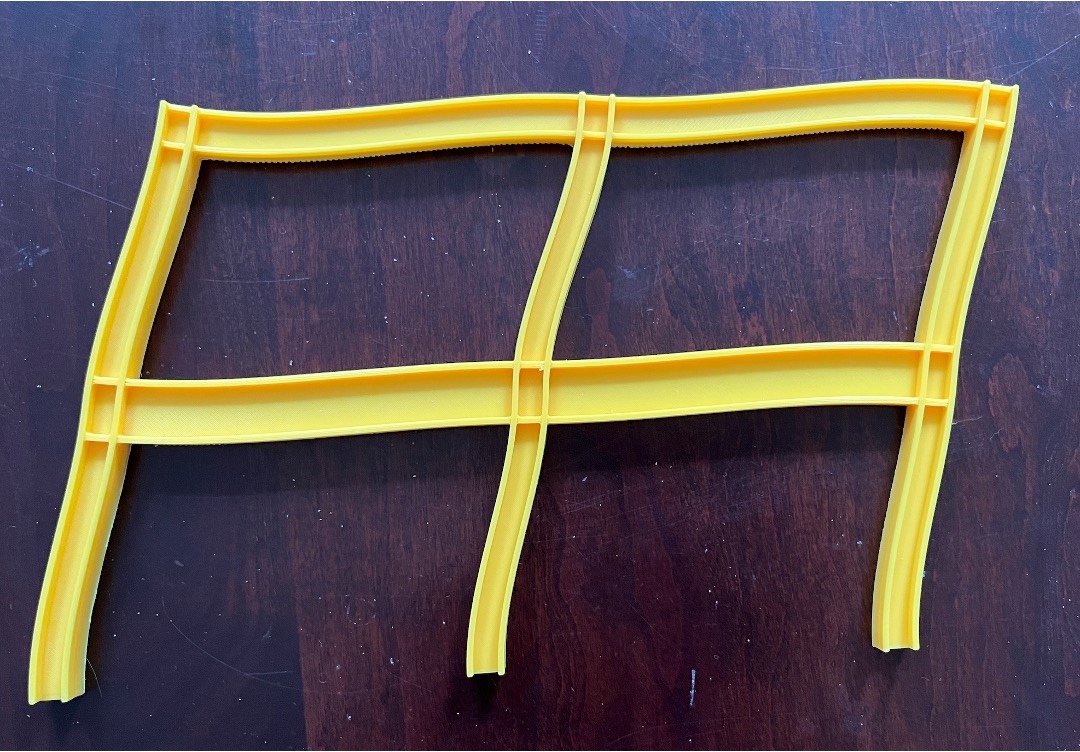

F2: Frame, Major, Normal, Fixed

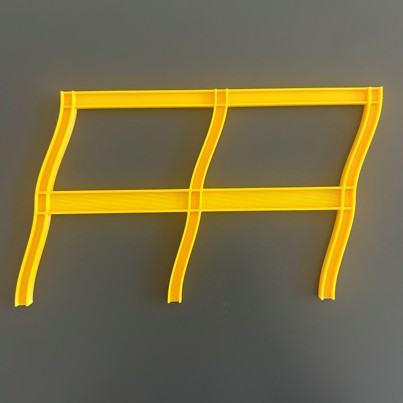

F3: Frame, Major, Rigid, Fixed

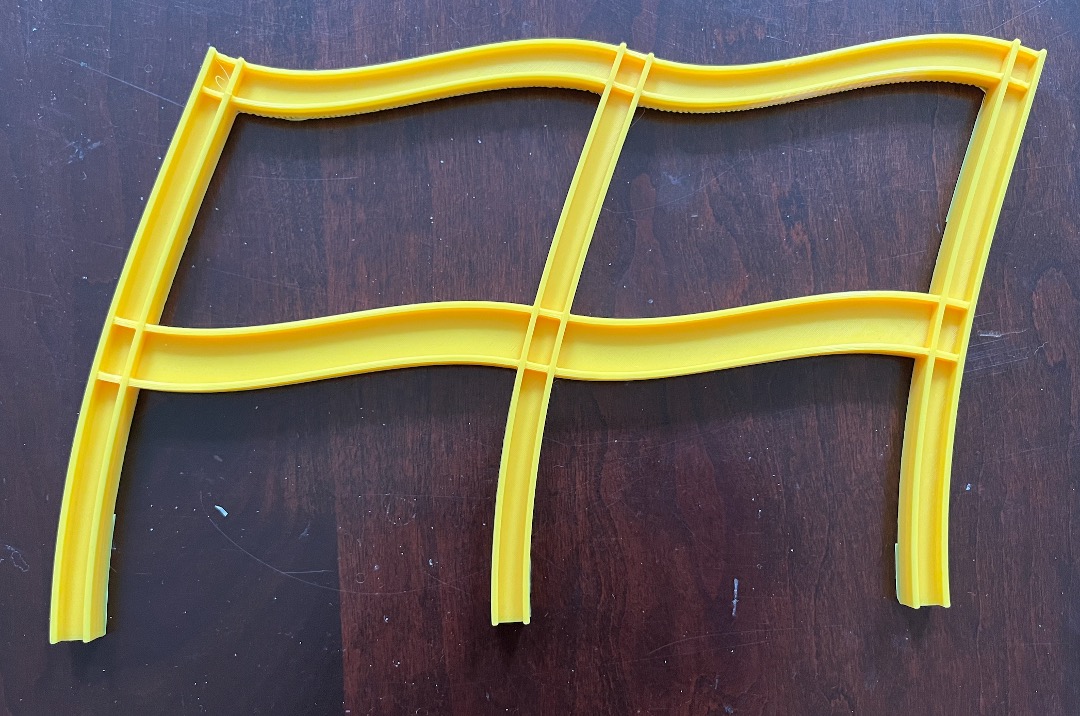

F4: Frame, Major, Flexible, Fixed
F5: Frame, Minor, Normal, Fixed

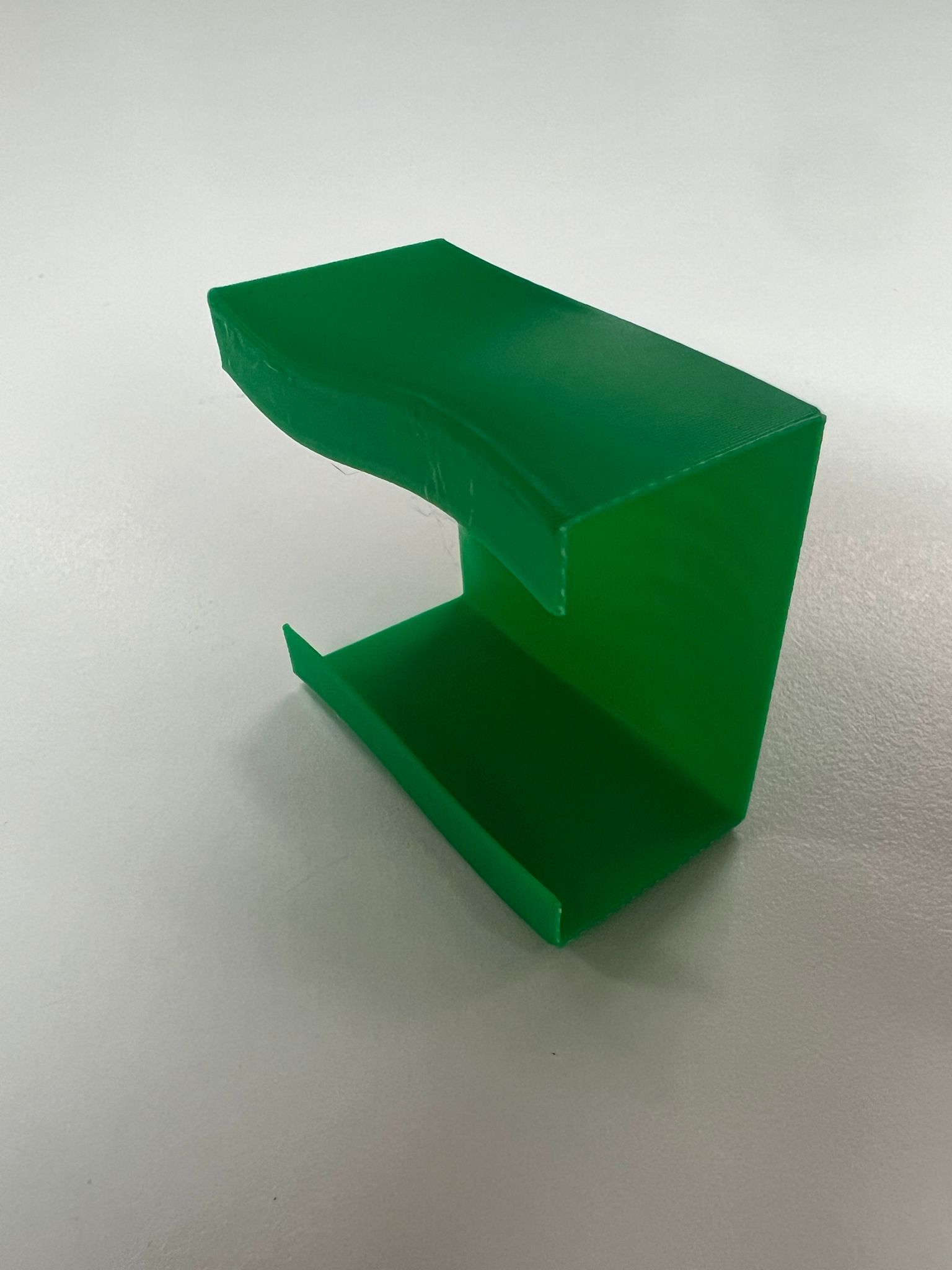

SFSM1: Lipped Channel, Local

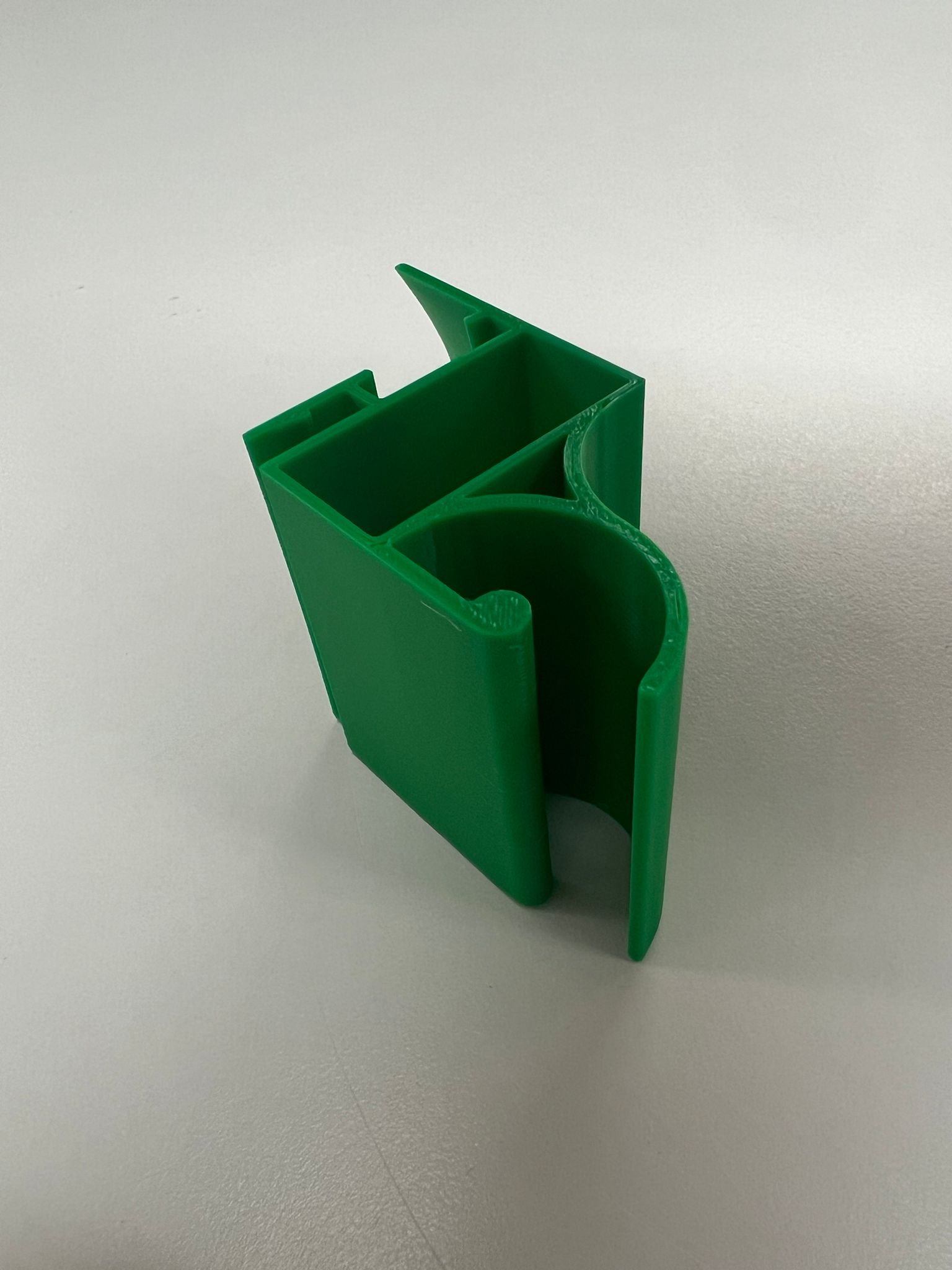

SFSM2: Extruded Al Shape, Local
![]()
